Understanding Different Types of Carton Boxes for Industrial Use
Carton boxes are an essential part of industrial packaging, offering durability, protection, and cost-effectiveness for transporting and storing goods. Whether you are shipping heavy machinery, fragile electronics, or bulk retail products, choosing the right type of carton box is crucial for ensuring safe and efficient logistics.
In this guide, we will break down the different types of carton boxes used in industrial applications, their key features, advantages, and best use cases, helping you make informed packaging decisions.
1. What Are Carton Boxes?
Carton boxes, also known as corrugated boxes, are multi-layered paper-based packaging solutions designed to protect products during transportation, storage, and handling. They are made from corrugated fiberboard, which consists of:
- Outer liner – The smooth external surface, often used for printing logos and labels.
- Fluted layer (corrugation) – The wavy middle layer that provides shock absorption and strength.
- Inner liner – The protective inner layer that helps reinforce the box’s structure and durability.
The strength of a carton box depends on the number of layers and flute types, which we’ll explore in the next sections.
2. Types of Carton Boxes for Industrial Use
2.1. Classification Based on Corrugated Layers
The number of corrugated layers in a carton box significantly impacts its strength, weight capacity, and resistance to compression.
- 3-Layer Carton Box (Single-Wall Carton Box) – Structure: One fluted layer sandwiched between two linerboards. They ideal for E-commerce & retail packaging; Lightweight product shipping; Food packaging (dry products, snacks, beverages).
- 5-Layer Carton Box (Double-Wall Carton Box) –Structure: Two fluted layers with three linerboards. They ideal for Electronics & appliance packaging; Machinery parts & industrial equipment; Bulk product shipping & export packaging.
- 7-Layer Carton Box (Triple-Wall Carton Box) – Structure: Three fluted layers with four linerboards. This box is used for Automotive & industrial packaging; Exporting heavy equipment & fragile products or Long-term storage & high-pressure stacking.
2.2. Classification Based on Box Design & Structure
Different industries require specific box designs to optimize product safety, usability, and handling efficiency.

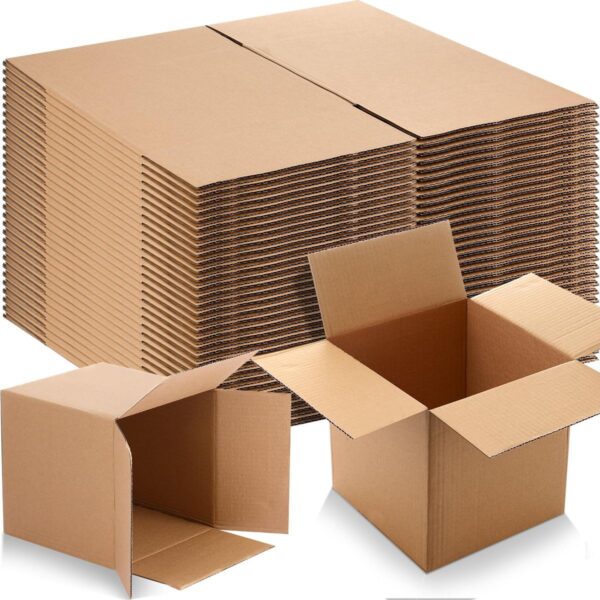

a. Regular Slotted Container (RSC) – Standard Carton Box
The Regular Slotted Container (RSC), commonly known as a standard carton box or flap-top carton box, is the most widely used type of box in the packaging and shipping industry. It features four flaps (two on the top and two on the bottom). When folded, the flaps meet in the center, leaving a small gap that can be sealed with tape or security labels.
Flap-top cartons are widely used for e-commerce packaging, books, documents, and food products.
b. Tuck Top Box – Folding Carton with Top Closure
The Tuck Top Box, also known as a folding carton with top closure, is one of the most commonly used paper boxes in the packaging industry. With a simple yet functional design, it is widely applied across various sectors.
A tuck top box consists of two main parts: the base and the tuck-in lid. When closed, the flaps securely interlock, creating a tight and protective structure.
Typically made from 3-layer, 5-layer, or 7-layer corrugated cardboard, depending on specific usage requirements.
c. Overlap Slotted Container (OSC) – Reinforced Closure Box
The Overlap Slotted Container (OSC) is a common variation of the regular slotted container (RSC). This box features four flaps (two on the top and two on the bottom), but unlike the RSC, the flaps are longer, allowing them to overlap when closed, providing extra reinforcement.
The overlapping flap carton is ideal for heavy or fragile products, offering enhanced strength and protection during transportation and storage.
d. Telescoping Box – Two-Piece Box with Separate Lid & Base
The Telescoping Box, also known as a two-piece carton, consists of two separate parts: the lid (top part) and the base (bottom part). The lid is designed to fit snugly over the base, creating a secure and sturdy structure. This design makes it an ideal choice for packaging and protecting high-value or fragile products.
e. Die-Cut Box – Custom-Designed Carton Box
The Die-cut Box, also known as a custom-cut carton, is a type of packaging box designed and manufactured using die-cutting technology. This process allows the box to be precisely shaped by cutting, perforating, or creating custom openings based on specific requirements.
With its high precision and flexible design, the die-cut box is commonly used for packaging uniquely shaped products or items that require a high level of aesthetic appeal.
f. Carton Box with Dividers – Partitioned Storage Box
The Partitioned Carton Box is a type of packaging box designed with internal dividers, which help separate and protect individual products within the box. This design is commonly used for fragile items, uniquely shaped products, or goods that require organized compartmentalization.
3. Different Types of Corrugated Flutes
The strength and thickness of carton boxes depend on the flute type inside the corrugated board. Each flute type serves a different purpose:
| Flute Type | Thickness | Best for |
| A-Flute | ~5mm | Maximum cushioning for fragile items |
| B-Flute | ~3mm | Stronger stacking ability for retail & canned goods |
| C-Flute | ~4mm | General-purpose industrial packaging |
| E-Flute | ~1.5mm | Lightweight & high-quality printing applications |
| F-Flute | ~0.8mm | Compact, strong & used in food packaging |
Tip: For industrial packaging, C-Flute or Double-Wall (BC Flute) is ideal for heavy products, while E-Flute works best for compact, lightweight goods.
4. Final Thoughts: Choosing the Right Carton Boxes for Your Needs
Selecting the right carton boxes for industrial use depends on:
- The weight & fragility of the product → 3-layer for light, 5-layer for medium, 7-layer for heavy items.
- Shipping & storage conditions → Moisture-resistant boxes for export, telescoping boxes for precision items.
- Packaging functionality → RSC for standard shipping, die-cut for retail displays, divider boxes for fragile goods.
